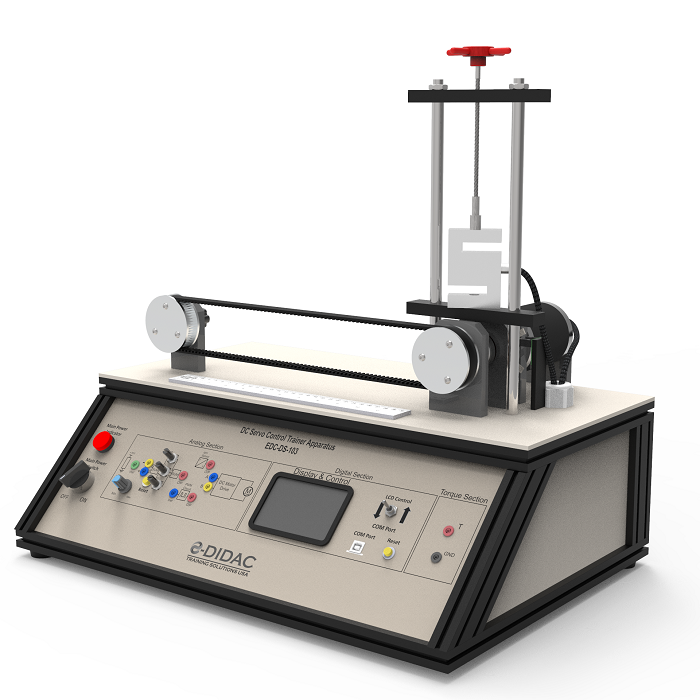

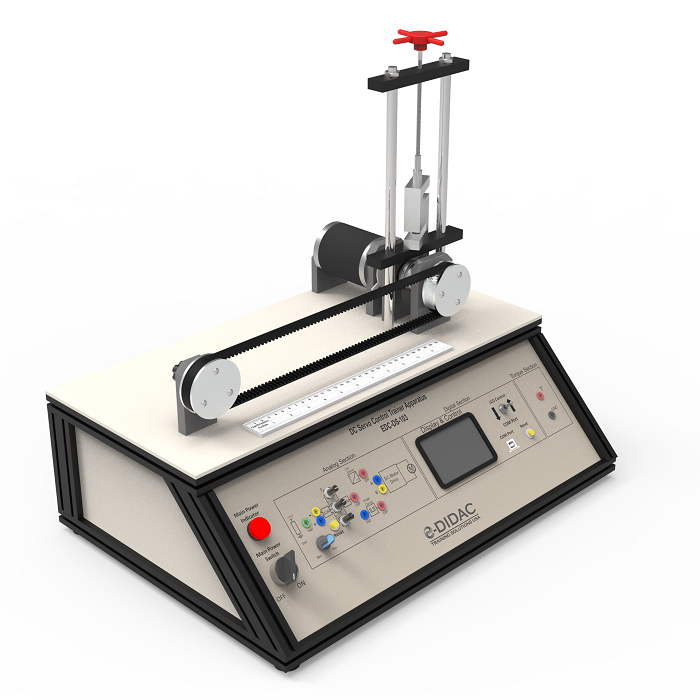

DC Servo Control Trainer Apparatus (EDC-DS-103)

A type of servomotor that uses DC electrical input to generate mechanical output like velocity, acceleration or position is known as DC servomotor.

The apparatus consists of touch LCD for changing the mode of experiment in position, torque and speed. Manual torque is applied using torque assembly.

Specification

Touch LCD for Display and Control.
DC Servo Controller Installed.
AC Power Supply.
Control Inputs.
Torque Assembly.
Variable supply +10V DC for Analog Control.
PID Control.

Technical data

Motor Power: 100W.
Motor Speed: 1000RPM.
Max Torque: 5Nm.
Encoder based position assembly.
Optical Encoder based speed sensor.
Position control, speed control and torque control of PMDC Motor.

Dimensions and weight

LxWxH:500 X 300 X 450 Weight:25 kg

Internal and External Speed Control of DC Servo Motor.
Torque Control.
Position Control.

1 x EDC-DS-103.
1 x Instructional Manual.
