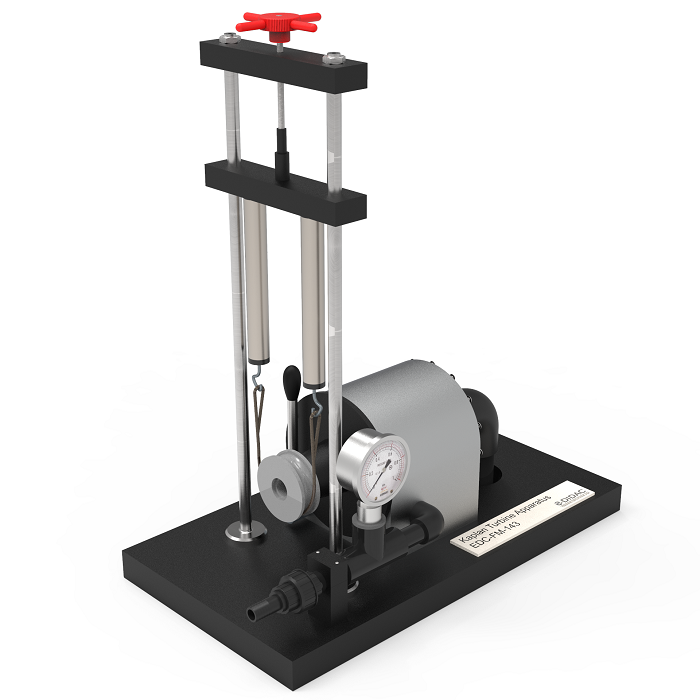

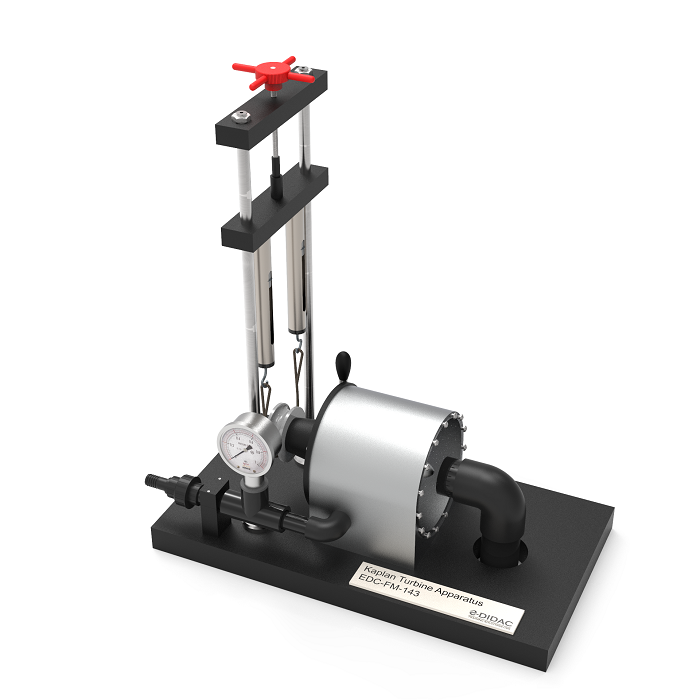

Kaplan turbines are categorized by an axial flow through adjustable blades. The angle of the water inlet
into the turbine and the cross-section of flow are altered by adjusting the director vanes. The adjustment
of the blades permits the velocity at the rotor to be modified. The combination of both adjustment options
optimizes efficiency.
Specification
- Purpose of a Kaplan turbine.
- Rotor with adjustable blades for
setting different velocities at the rotor.
- Loading the turbine by use of the band
brake.
- Instruments: spring balances for
defining the torque.
- Flow rate and water supply are fortitude
by base module EDC-FM-100.
Technical data
- Turbine:
- output: approx. 7W at 600 min-1.
- Rotor:
- Blades, adjustable.
Dimensions and weight
LxWxH:400 X 400X 650
Weight:22 kg
