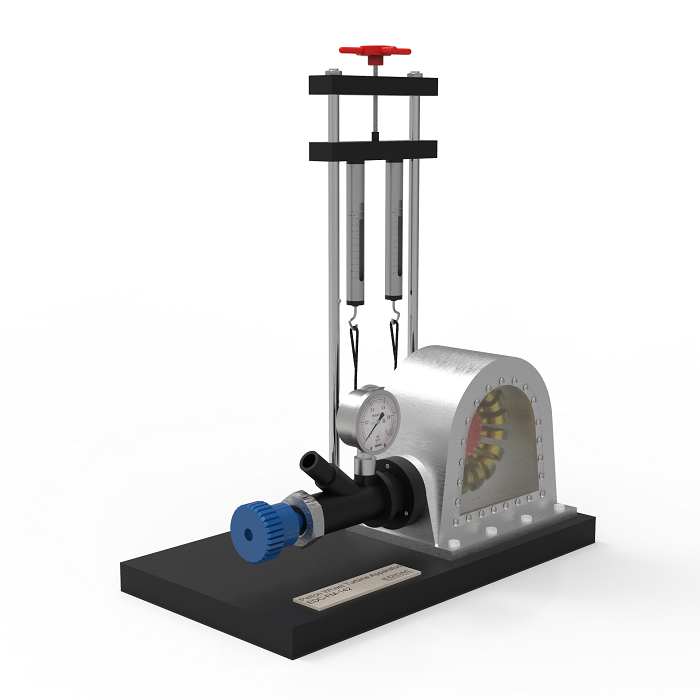

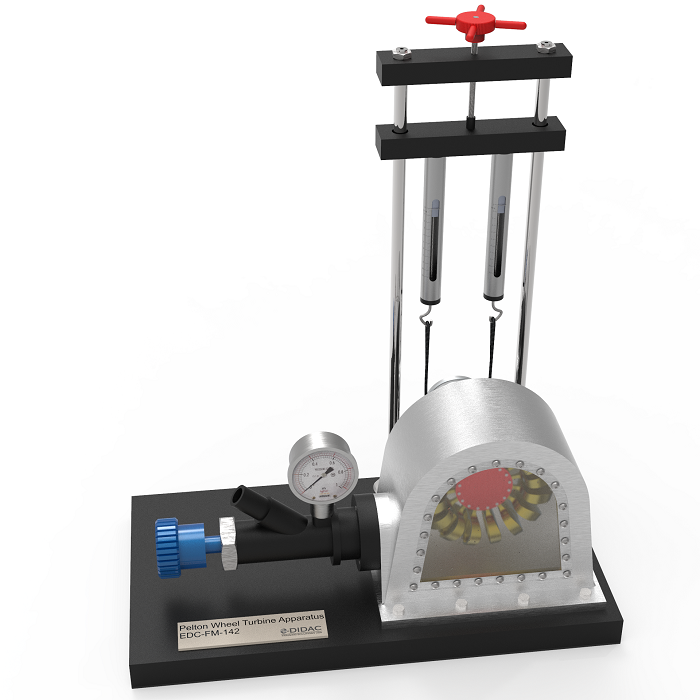

The Pelton turbine is a type of impulse turbine; such turbines change the pressure energy of water into
kinetic energy totally. During the conversion, the water jet is augmented in a nozzle and directed onto the
blades of the Pelton wheel obliquely. The water jet is redirected by approximately 180° in the blades. The
impulse of the water jet is transmitted to the Pelton wheel.
Specification
- Purpose of a Pelton turbine.
- Clear front panel for witnessing the
operating area.
- Loading the turbine by use of the band brake.
- Changeable nozzle needle for setting
different nozzle cross-sections.
- Instruments: spring balances for defining the
torque.
- Flow rate and water supply are fortitude by
base module EDC-FM-100.
Technical data
- Pelton wheel:
- 14 blades.
- Pelton turbine.
- output: 5 W at 550 min-1, approx.
35 L/min, H=1.5 m.
- Needle nozzle type.
Dimensions and weight
LxWxH:400 X 400X 650
Weight:22 kg
