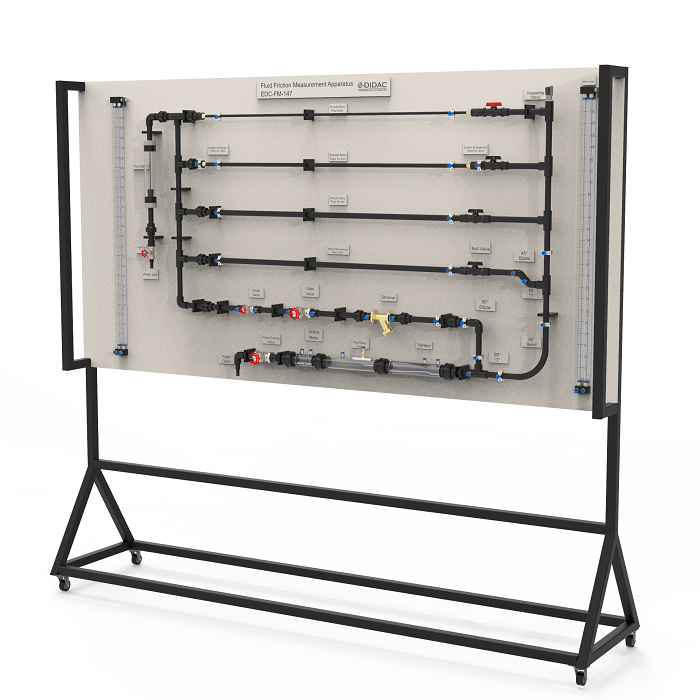

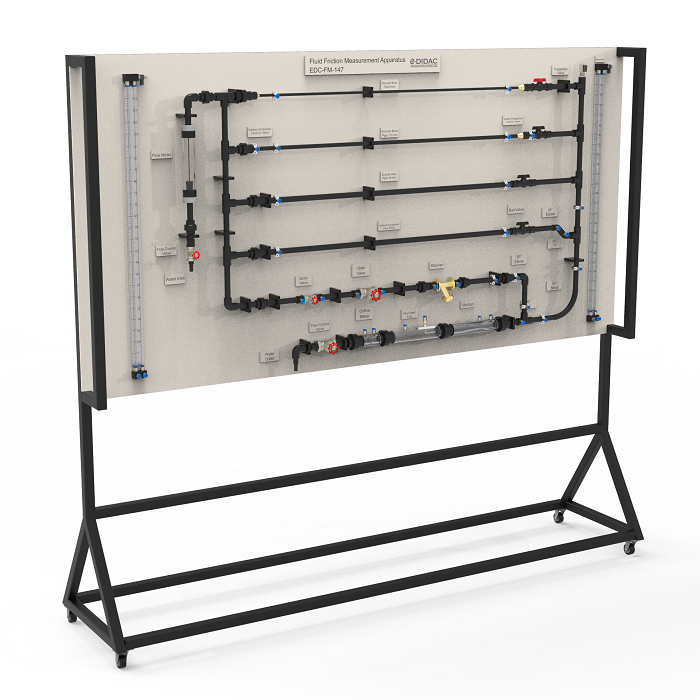

The unit contains different pipe segments accomplished of being shut-off separately. The pipe sections
are equipped with piping elements such as bends, elbows and branches. In one pipe section, different
shutoff strategies and measuring objects are fitted to determine the flow rate. The measuring objects are
made of transparent material which provide excellent vision into the inner structure.
Pressure losses happen during the flow of real fluids due to friction and turbulence. Pressure losses occur
in pipes, pipeline elements, fittings and measuring devices. These pressure losses must be taken into
account when scheming piping systems.
Specification
- Water supply resolute by EDC-FM-100 base
module.
- Self-contained flow meter to measure flow.
- Different pipe sections proficient of being
separately shut off, with different piping
elements: sudden contraction, sudden
enlargement, Y-pieces, T-pieces, corners
and bends.
- Study of pressure losses in piping elements.
- Different measurement items for defining
flow rate rendering to the differential
pressure method.
- Measuring objects finished of transparent
material: Venturi nozzle, orifice plate flow
meter and measuring nozzle.
- 2 identical tube manometers for measuring
the pressure difference.
Technical data
- Smooth bore pipes of various diameters.
- An artificially roughened pipe.
- A 90 bend.
- A 90 elbow.
- A 45 elbow.
- A 45 “Y”.
- A 90 “T”.
- A sudden enlargement.
- A sudden contraction.
- A gate Valve.
- A globe valve.
- An in-line strainer.
- A venturi.
- An orifice meter.
- Pitot Static Tube.
Dimensions and weight
LxWxH:2450 X 600 X 2200 mm
Weight:80 kg
