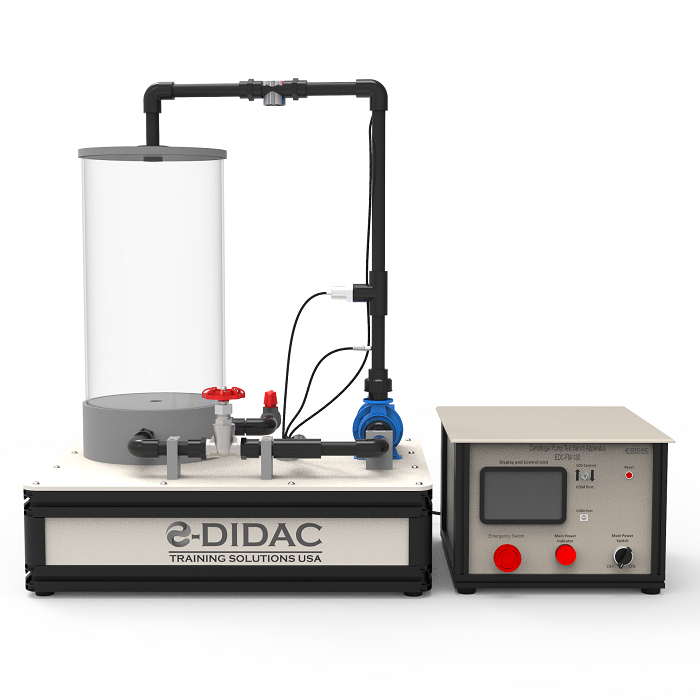

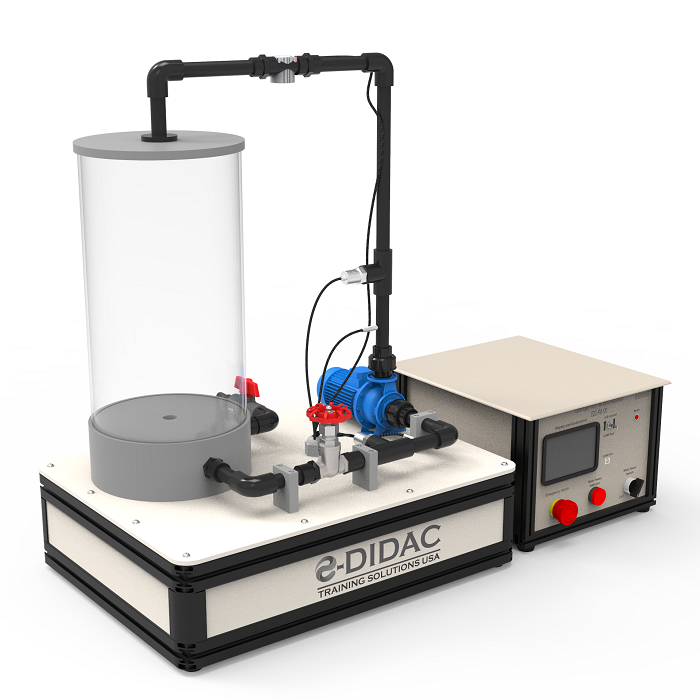

A centrifugal pump is a powered device intended to move a fluid by means of the transmission of
rotational energy from one or more driven rotors, called impellers. Fluid enters the quickly rotating
impeller along its axis and is cast out by centrifugal force along its circumference through the impeller's
vane tips.
There are three other different options in this apparatus:
- Variable speed of the pump.
- Transparent head of the pump.
- Pump with both variable speed and transparent head.
Specification
Examination of Centrifugal Pump
Flow changing using valve at inlet.
Pressure changing by changing valve
position at outlet
Digital pressure and flow sensors
LCD Display for pressure and flow
measuring values
Closed loop path for flow of water.
Tank for the storage of water
Optional software with control functions and
data acquisition via USB under Windows
8.1, 10.
Technical data
Centrifugal pump
max. flow rate: 25 L/min
max. head: 5m
Water tank: approx. 15L
Power: 230V, 50Hz, 1 phase
Pump with the variable speed control Model:
EDC-FM-130V. (Optional)
Pump with the transparent head Model: EDCFM-130T. (Optional)
Pump with the transparent head & Variable
speed Model: EDC-FM-130VT. (Optional)
Dimensions and weight
LxWxH:600 X 600 X 600 mm
Weight:40 kg
