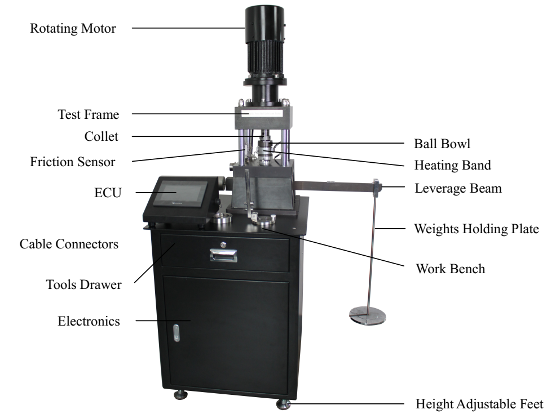

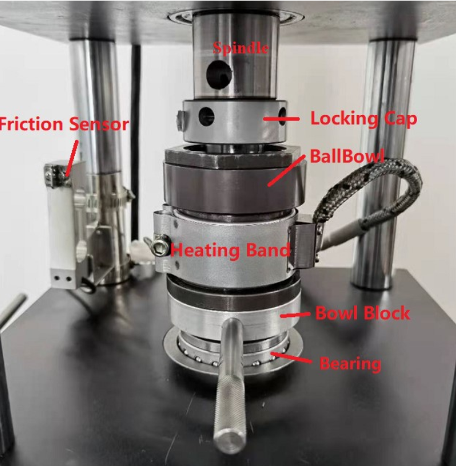

A ball, mounted in a chuck, is rotated against three
stationary balls in a pot containing the sample lubricant. The digital speed controller can be used to adjust the rotation speed. A load, adjustable in the range 10 to 1000 kgF, is applied to the balls via a balance beam. The applied load is displayed on a digital readout. The torque transferred between the rotating and stationary balls is measured and displayed on digital readout.
Specification
• Manual Loading
• Applied loads range up to 1000kgF
• Drive speed from 600 to 2800 rpm
• Digital timer and display with selectable
range 1s to 99hr 99min
• Digital displays and microprocessor
control of Applied Load and Torque
• Torque limiting and cut-off
• Interlocked guards for maximum safety
• Integrated heating pad and controller
• Unique test ball loading/removal tool
• Built-In Temperature Control Kit
• Built-In Wear Loading Assembly
• Grinding Resolution: 0.001mm
• Test Standards: ASTM D2266; ASTM D4172; ASTM D2596; ASTM D2783; IP239: CEC L-45-A-99
Technical data
Control: 7 inch touch Screen
Speed Range: 600 to 2800 rpm
Load Range: 10 to 1000 kgF
Timer: 1s to 99hr 99min, resolution 0.1s
Grinding Resolution: 0.001mm
Temperature Kit: Built-In
Weight Loading Assembly: Built-In
Temperature Accuracy: ± 0.5°C
Speed Accuracy: ± 5 r/min
Operating Voltage: 220V/50Hz (This eliminates the need for 110V Auto transformer)
Test Method: ASTM D2266; ASTM D4172; ASTM D2596; ASTM D2783; IP239: CEC L-45-A-99
Dimensions and weight
LxWxH:xyz
Weight:xyz
